CODE MASTER MINI FUEL INJECTOR TEST BENCH

CODE MASTER MINI FUEL INJECTOR TEST BENCH

$ 91.81

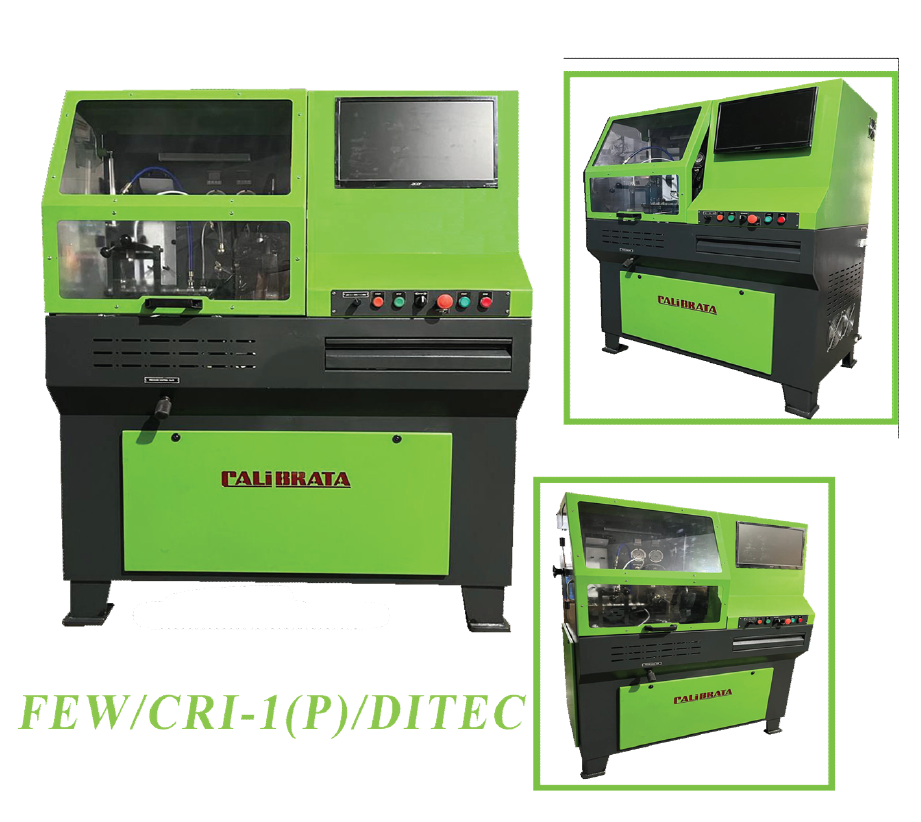

FEW/CR-1/P-BOTAX TESTING FUNCTIONS Single Injector/ Pump/ Rail (Flow meter/ Manual) MAIN FABRICATED FRAME M.S. Sheet All CNC work out Fabricated NATURE OF DRIVE A.C. Inverter Drive (10 H.P.) MAIN ELECTRIC MOTOR / TRANSMISSION 10 H.P.,1440 R.P.M. (440 volts, 50Hz) Direct Drive FUEL SUPPLY MOTOR & PUMP 1 H.P. (440 volts,50Hz)with Isolating valve with 5 micron fine filtration FUEL SUPPLY MEASURING CONSOLE/MODE One Main & One Return Delivery (260/44ml)/ On Monitor Through flow meters DISPLAY Monitor, Keyboard, Mouse R.P.M. RANGE 0-3000 R.P.M. (variable through Monitor and Potentiel meter PRESSURE GAUGES 0-7kg/cm², 0-14kg/cm², -1- 3kg/cm², 0-42kg/cm² OIL TANK 40 Ltr. With Filter MOUNTING RAIL Solid M.S. CNC Machined MOUNTING ACCESSORIES Single Injector holding Fixture & CR Pump Mounting bracket with flange. FLEXIBLE COUPLING 95 mm As per Standard CONDENSING FAN UNIT For maintaining the moderate temp. of Rail return fuel CLOSE LOOP TEMP. UNIT WITH CHILLER For maintaining the specific temp. of Fuel Automatically FINE FILTERATION Suction Filter with Priming and 5 micron Standard pressure Filter LUBRICATION SYSTEM For supplying the lube oil to high pressure fuel injection CR pumps with regulating valve DENSO FUEL INJECTORS DENSO PIEZO FUEL INJECTORS VOLVO EUI EUP UNIT INJECTORS BHARAT BENZ UNIT INJECTORS CUMMINS FUEL INJECTORS, QSK BOSCH CUMMINS CELECT INJECTORS SALIENT FEATURES SPECIFICATION COMMON RAIL, INJECTOR & PUMP TEST BENCH 1.) New CRS controller/ Simulator Controlled with in-built Windows operating system. 2.) More than 3000 kinds of injector data can be searched and used. 3.) It is installed with BOSCH common rail pressure sensor and DRV to provide 0~2700 bar testing 5.) Rail pressure can be tested in real time, 6.) Provide pressure overload protect 7.) Pulse and frequency of the injector can be adjusted. 8.) Injection actuation timing sensor is available on demand only. Digital AHE testing or stroke testing 9.) Sensor Resistance capacitance and inductance testing with Protection function of short-circuit. 10.) Test the Leakage performance of common rail injector. 11.) Injection oil quantity and back oil quantity (pre-injection, idling, emissions, full load) BOSCH PIEZO FUEL INJECTORS DELPHI FUEL INJECTORS CAT C11, C12, C13, C15, C18, C32, C3412, C3500, C3508, C3600, UNIT INJECTORS SIEMENS / CONTINENTAL INJE CTORS BOSCH EURO 6 COMMON RAIL FUEL INJECTORS BOSCH COMMON RAIL FUEL INJECTORS

Including VAT | Excludes Shipping
